Specifications
Power
- Energy capacity: 46.08 kWh
- Continuous power: 18 kW AC
- AC output: 120/240 Vac, 60 Hz, split phase, 75 A continuous
- Grid pass-through: 200 A
Battery and Inverter

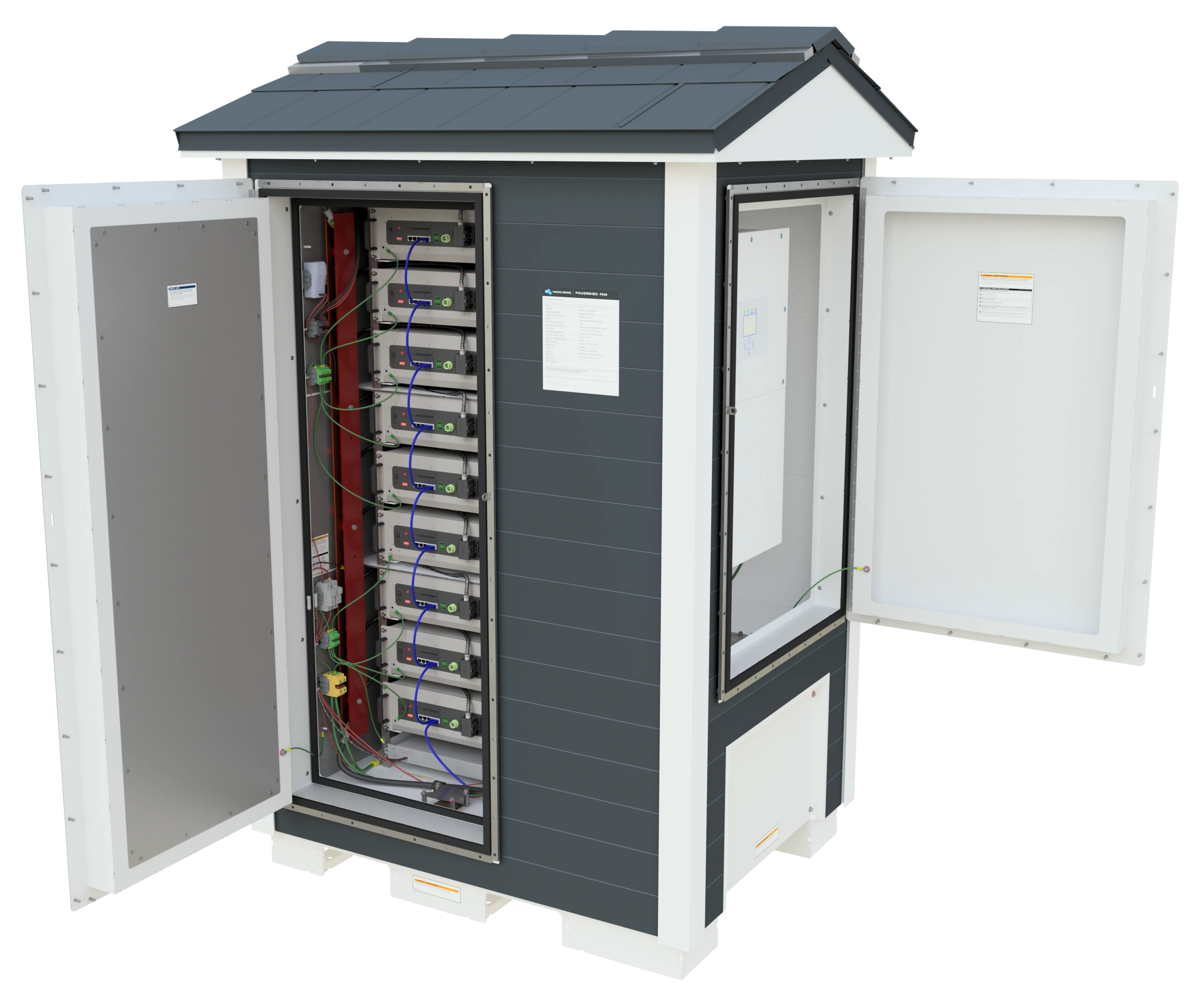

- Battery chemistry: LFP, 9 × Pytes V5 modules
- Battery bus: 51.2 Vdc nominal (47.5 to 57.6 Vdc)
- Inverter: Sol-Ark Limitless 18K-2P-LV hybrid
- Inputs: grid, solar and generator
Build and Certification
Enclosure

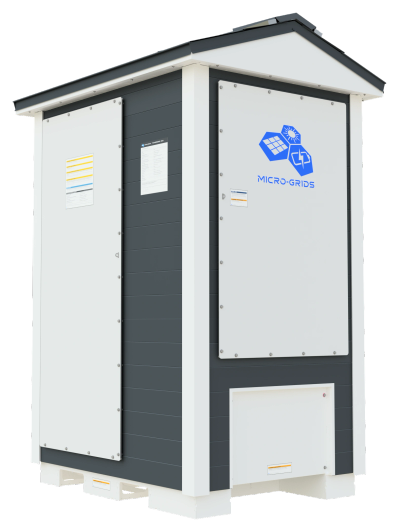

- Construction: Type 3R outdoor, insulated, powder-coated steel frame
- Operating ambient: -20 °F to 115 °F (-29 °C to 46 °C)
- Thermal management: integral heater and cooling fans, thermostatically controlled; passive ventilation
- Cold weather: integral heater keeps batteries in their charging range in sub-zero weather
Size and Certification
- Dimensions: 60 in W × 49 in D × 89 in H
- Weight: approximately 3,000 lb, installed
- UL 9540 certification: Third Edition listing in progress with Intertek (ETL)
